YEOU CHERNG PLASTICS INDUSTRY

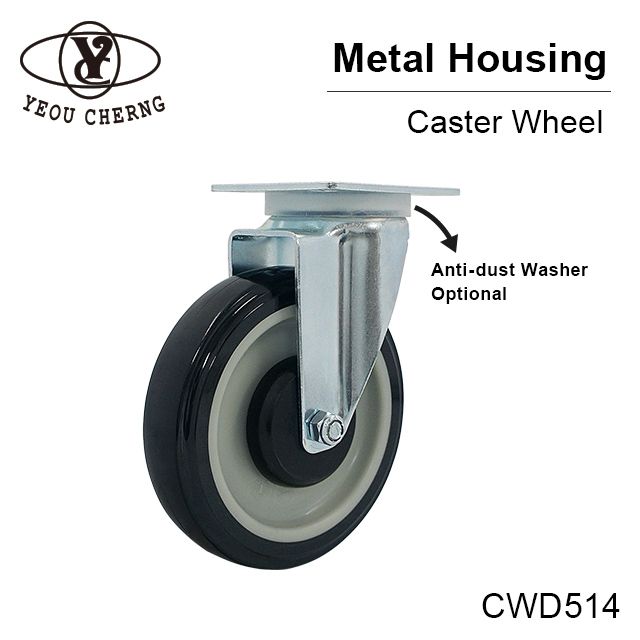

CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel
CWD514 Caster Wheel

CWD514 Caster Wheel

1. 5" x 1.25" Swivel Plate Caster with Polyurethane Wheel.
2. Top plate size: 93 x 68 mm
3. 360 degree Swivel caster.
4. Loading capacity: 120 kgs ( 265 LBS )
5. Caster bracket with anti-dust washer optionally.
6. TPU wheel 5" x 1.25" (Dia.127*30.8 mm).
7. Optional wheel color of black/grey and blue/grey.
8. Good for tool box, tool cart, trolly and flate panel assembly.

Add to inquiry cart Back

YEOU CHERNG Plastics Industry Co., Ltd.

caster wheel



1. 5" x 1.25" Swivel Plate Caster with Polyurethane Wheel.
2. Top plate size: 93 x 68 mm
3. 360 degree Swivel caster.
4. Loading capacity: 120 kgs ( 265 LBS )
5. Caster bracket with anti-dust washer optionally.
6. TPU wheel 5" x 1.25" (Dia.127*30.8 mm).
7. Optional wheel color of black/grey and blue/grey.
8. Good for tool box, tool cart, trolly and flate panel assembly.






Dimension Unit : mm
Model No. CWD514
L  93 (3.66")
W  68 (2.68")
H1 -
H2 -
H 160 (6.30")
Radius -
Wheel WD514: Dia. 127 x 30.8 mm

Model Number CWD514
Feature 1. 5" x 1.25" Swivel Plate Caster with Polyurethane Wheel.
2. Top plate size: 93 x 68 mm
3. 360 degree Swivel caster.
4. Loading capacity: 120 kgs ( 265 LBS )
5. Caster bracket with anti-dust washer optionally.
6. TPU wheel 5" x 1.25" (Dia.127*30.8 mm).
7. Optional wheel color of black/grey and blue/grey.
8. Good for tool box, tool cart, trolly and flate panel assembly.
Material TPU, PP, PE, Metal
Color Nickel
MOQ 1000 pcs
Application Tool case, wood case, muical case, aluminum case.
ODM/OEM YES














Packaging Details 24 pcs/ ctn / 20.8 kgs
Measurement 40*33.5*28.5 cm/ 0.038 CBM
Port TAIWAN PORT
Lead Time : 1 - 1000 Est. Time 35 (days)
Lead Time : 1001 - 5000 Est. Time 45 (days)
















YEOU CHERNG Plastics Industry Co., Ltd.

caster wheel



Dimension Unit : mm
Model No. CWD514
L  93 (3.66")
W  68 (2.68")
H1 -
H2 -
H 160 (6.30")
Radius -
Wheel WD514: Dia. 127 x 30.8 mm

Model Number CWD514
Feature 1. 5" x 1.25" Swivel Plate Caster with Polyurethane Wheel.
2. Top plate size: 93 x 68 mm
3. 360 degree Swivel caster.
4. Loading capacity: 120 kgs ( 265 LBS )
5. Caster bracket with anti-dust washer optionally.
6. TPU wheel 5" x 1.25" (Dia.127*30.8 mm).
7. Optional wheel color of black/grey and blue/grey.
8. Good for tool box, tool cart, trolly and flate panel assembly.
Material TPU, PP, PE, Metal
Color Nickel
MOQ 1000 pcs
Application Tool case, wood case, muical case, aluminum case.
ODM/OEM YES




Packaging Details 24 pcs/ ctn / 20.8 kgs
Measurement 40*33.5*28.5 cm/ 0.038 CBM
Port TAIWAN PORT
Lead Time : 1 - 1000 Est. Time 35 (days)
Lead Time : 1001 - 5000 Est. Time 45 (days)
